DWG Floor Plans
iGUIDE offers the fastest and most cost-effective solution for capturing and drafting 2D floor plans with the DWG file export intended as a head start on architectural and construction floor plans as well as as-build and design drawings.
With iGUIDE, you can turn around DWG floor plans within 48 hours¹.
¹DWG Floor Plan delivery time is dependent on property size and complexity and may exceed 48 hours. Excluding Sundays, holidays, and outside office hours (Mon – Fri, 9am – 5pm EST).

iGUIDE DWG comes in two different types
A fast and cost-effective solution for generating 2D floor plans, DWG files and 3D virtual walkthroughs.
Standard DWG Add-on
Processing pricing summary:
- Canada: iGUIDE Standard + $0.028/ft² CAD
- United States: iGUIDE Standard + $0.02/ft² USD
- International: iGUIDE Standard + $0.215/m² USD
DWG Floor Plans include:
- Various window types
- Interior wall thicknesses set to North American standards³
- Exterior spaces included (patios, decks, porches, etc.)
- Vertical floor-to-floor alignment
- A LOD (level of development) of 200
- AIA (American Institute of Architects) standard layers
³Dimensional lumber increments.
Premium DWG Add-on
Processing pricing summary:
- Canada - iGUIDE Premium + $0.028/ft² CAD
- United States - iGUIDE Premium + $0.02/ft² USD
- International - iGUIDE Premium + $0.215/m² USD
An upgraded file with additional details. Premium DWG file annotations include:
- Labels
- Areas
- Objects
- Dimensions
iGUIDE RVT Add-on
Significantly reducing design process timelines, the iGUIDE RVT Add-on³ is the ultimate tool for transforming your physical space into an accurate 3D digital model.
- 3D model built from lidar data with vertical floor-to-floor alignment
- 2D DXF, Point Cloud data, DWG Floor Plan, realistic rendering and 3D virtual walkthrough
- Complex ceilings, window types, structural elements and features
- Annotations with labels, area totals, objects, dimensions, etc.
- Exterior spaces: porches, patios, decks, etc.
³RVT model delivery time is dependent on property size & complexity which may exceed 72 hours. Excluding Saturdays & Sundays, holidays and outside office hours (Mon – Fri, 9am – 5pm EST). Only available in North America.
Explore our iGUIDE
Drawing Packages
iGUIDE 3D CAD Package
3D Virtual Walkthrough • CAD Floor Plan • 3D Model • Plotted PDF • Roof Plan • Exterior Elevation Drawing
Unlock a property's full potential. This package pairs iGUIDE's immersive experience with 2D CAD (DWG) and 3D Model (Revit) deliverables, detailed Plotted PDFs, plus a Roof Plan and Exterior Elevation Drawing to provide comprehensive documentation of your property.
Estimated delivery: 5-10 business days¹

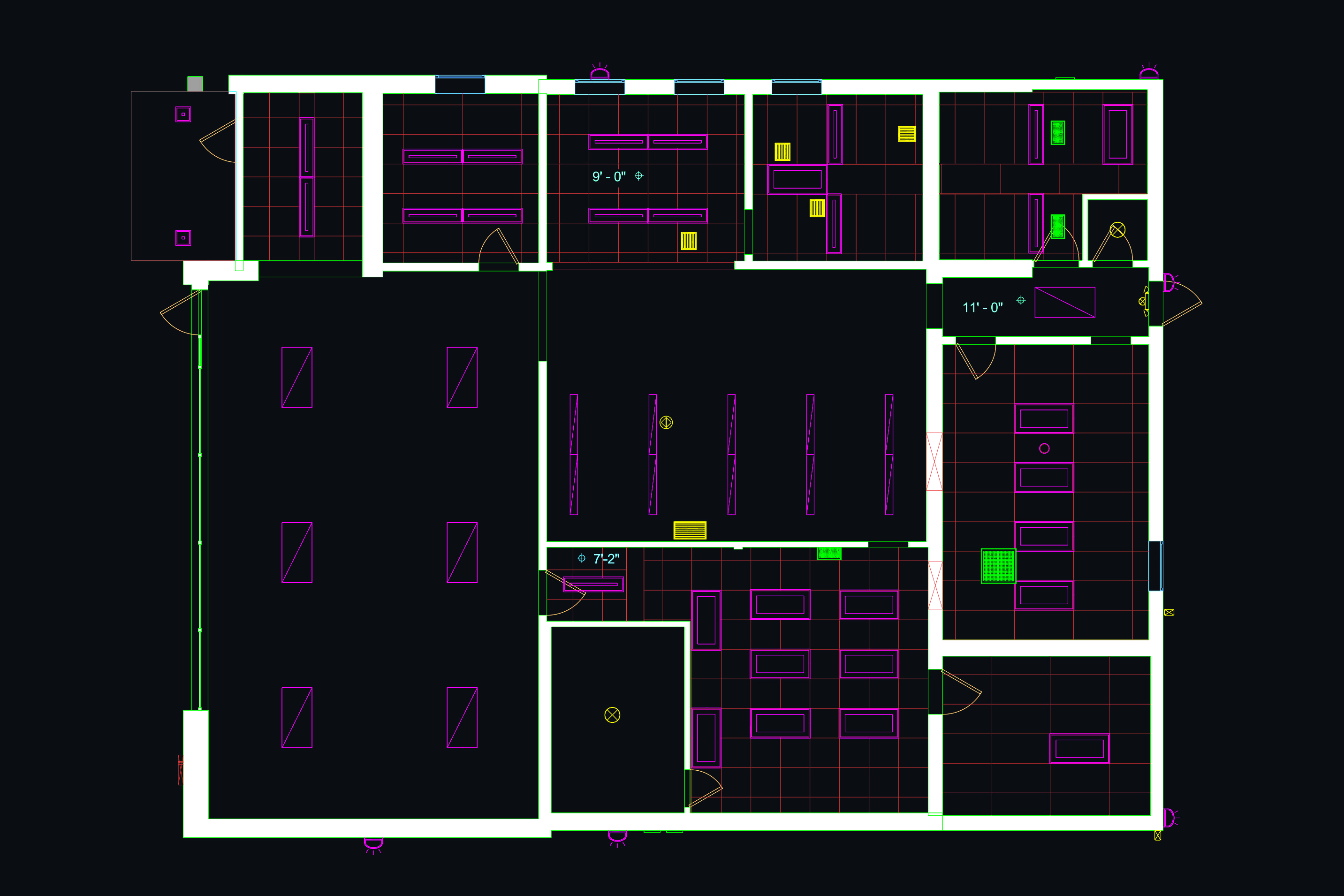

Add-on: Reflected Ceiling Plan

iGUIDE 2D CAD Package
3D Virtual Walkthrough • CAD Floor Plan • Plotted PDF
Get the complete picture. This bundle combines iGUIDE's immersive tours with editable CAD Floor Plans (DWG files) and detailed Plotted PDFs for comprehensive property documentation and a jumpstart on your design process.
Estimated delivery: 1-5 business days¹
Add-on: Reflected Ceiling Plan

iGUIDE Add-ons
Enhance your project with additional detail
- Reflected Ceiling Plan (available with both packages)
- Roof Plan (included with the ‘3D CAD Package’)
- Elevation Drawings (included with the ‘3D CAD Package’)

Explore the iGUIDE PLANIX camera systems
PLANIX R1
Looking to create accurate floor plans and immersive 3D tours that are easy to navigate?
The iGUIDE PLANIX R1 camera system is for you! With a built-in time-of-flight lidar scanner, the camera’s accuracy exceeds commercial and residential industry standards.
iGUIDE’s new PLANIX R1 is a game-changer—faster, more capable, and essential to our success. It’s a clear winner!
– Doug Logan, Fine Homes Photography
To capture a property, it’s a simple 3 step process:
- Capture: Connect your iGUIDE PLANIX R1 camera system to your smart device via the iGUIDE PLANIX mobile app, create a new project and start scanning the property.
- Process: Upload your data to the iGUIDE Portal where your iGUIDE 3D virtual tour, schematic floor plan, DWG or ESX files will be available once ready.
- Utilize: Easily share your files, post on social media or upload to your website. iGUIDE file formats integrate with smart devices and web platforms.
Did we mention?
iGUIDE Processing is per project with no subscription fees!
Why go R1 vs Core?
The next-gen PLANIX R1 elevates visuals with 130% more megapixels and on-site live mapping powered by SLAM technology. Its compact, rugged design and swappable battery ensure all-day shooting with trusted precision.

Performance
Measurement Range:
Up to 40m (approx. 130')
Typical Measurement Uncertainty:
+/- 25mm up to max range (raw point cloud), typically +/- 10mm from camera to wall (minimum 60cm wall length)
Laser Scanner Field of View:
360°
360° Camera:
Ricoh THETA X
Resolution:
11,008 x 5,504 (60MP)
Mechanical
System Unit Weight (without cover):
725g (1.76lb)
System Unit Weight (with cover):
986g (2.2lb)
System Unit Dimensions (without cover):
W: 9.90cm (3.90") x D: 7.75 cm (3.05") x H: 28.89cm (11.375")
System Unit Dimensions (with cover):
W: 9.90cm (3.90") x D: 7.75 cm (3.05") x H: 29.53cm (11.625")
Shipping weight (with carrying case, without packaging):
1,996g (4.4lb)
Carrying Case Dimensions:
W: 57.15cm (22.5") x D: 15.24cm (6") x H: 13.97cm (5.5")
Tripod Mounting Thread:
1/4-20
Connectivity & System Control
Wi-Fi:
Wi-Fi 802.11 2.4GHz/5GHz Access Point
Survey App:
iGUIDE PLANIX Mobile App
Environmental
Operating Temperature Range:
5-40°C (41-104°F)
Storage Temperature Range:
-20-60°C (-4-140°F)
Relative Humidity:
0-90%
Maximum Altitude (operating):
2,000 m
Electrical
System Battery:
12V Li-Ion battery, user-replaceable
System Power Supply:
Input: Input: USB-C 100-240VAC, 50-60Hz, 1.0A;
Output: 12VDC, 1.8A
System Battery Performance:
Up to 6 hours of typical operation
PLANIX Core
Looking to create accurate floor plans and immersive 3D tours that are easy to navigate?
The iGUIDE PLANIX camera system is for you! With a built-in time-of-flight lidar scanner, the camera’s accuracy exceeds commercial and residential industry standards.
It used to take me over two-and-a-half hours to go into a home and just do measurements and manually insert them into floor plans. But, with iGUIDE, it was all so quick and easy!
– Julie Pringle, Snap Photography
To capture a property, it’s a simple 3 step process:
- Capture: Connect your iGUIDE PLANIX camera system to your smart device via the iGUIDE PLANIX mobile app, create a new project and start scanning the property.
- Process: Upload your data to the iGUIDE Portal where your iGUIDE 3D virtual tour, schematic floor plan, DWG or ESX files will be available once ready.
- Utilize: Easily share your files, post on social media or upload to your website. iGUIDE file formats integrate with smart devices and web platforms.
Did we mention?
iGUIDE Processing is per project with no subscription fees!
Is the CORE for you?
The iGUIDE PLANIX Core is for users who already have a Ricoh THETA Z1 (other cameras are not supported) and would like to use it for making iGUIDEs. We’ll provide instructions to help you install the RICOH THETA Z1 onto the iGUIDE PLANIX camera system.

Performance
Measurement Range
Up to 40m (approx. 130′)
Measurement Uncertainty
+/- 1cm (approx. 0.4″) up to max range*
Laser Scanner Field of View
360 degrees
360° Camera
Ricoh THETA Z1
Connectivity and System Control
Wi-Fi
Wi-Fi 802.11 2.4GHz/5GHz Access Point
Survey Web App
iGUIDE PLANIX app or Planitar web app in a browser over Wi-Fi from any device
Electrical
System Battery
7.2V 6.9Ah/47.7Wh Li-Ion battery, user-replaceable
System Power Supply
Input: 100-240VAC, 50-60Hz, 1.0A; Output: 12VDC, 3.3A
System Battery Performance
7 hours of typical operation
Mechanical
System Unit Weight
980g (2.16 lbs)
System Unit Dimensions
W: 11cm (4.3″) x D: 11cm (4.3″) x H: 34cm (13.4″)
Shipping weight (with carrying case, without packaging)
3.6 kg (8 lbs)
Carrying Case Dimensions
W: 39cm (15.4″) x D: 29cm (11.2″) x H: 17cm (6.7″)
Tripod Mounting Thread
1/4-20
Environmental
Operating Temperature Range
0-40 degrees C (32-104 degrees F)
Storage Temperature Range
-20-50 degrees C (-4-122 degrees F)
Relative Humidity
0-90%
*Typical, based on at least 60cm (approx. 23.6″) wide wall segment.
