Experience every angle
Use the iGUIDE PLANIX R1 camera system to accurately document spaces and create an iGUIDE in minutes.
Each iGUIDE provides:
- An immersive 3D tour
- Accurate lidar measurement within 0.5%
- ANSI-Z765-2021 2D floor plans
- Comprehensive documentation
Why choose iGUIDE?
Fast
3D virtual tours and 2D floor plans.
Accurate
Measurement within 0.5%.
Reliable
Easy one-button capture.
Secure
You control your data.
Elevate your workflow with PLANIX R1!
Improved visuals
Capture stunning visuals with improved color and contrast.
Compact & rugged design
Explore the compact and rugged design that easily integrates with the gear you love.
Effortless precision
Intuitive and easy to use, delivering the precise, accurate data you trust from iGUIDE.
See how iGUIDE can digitize any space!
Explore the iGUIDE PLANIX camera systems

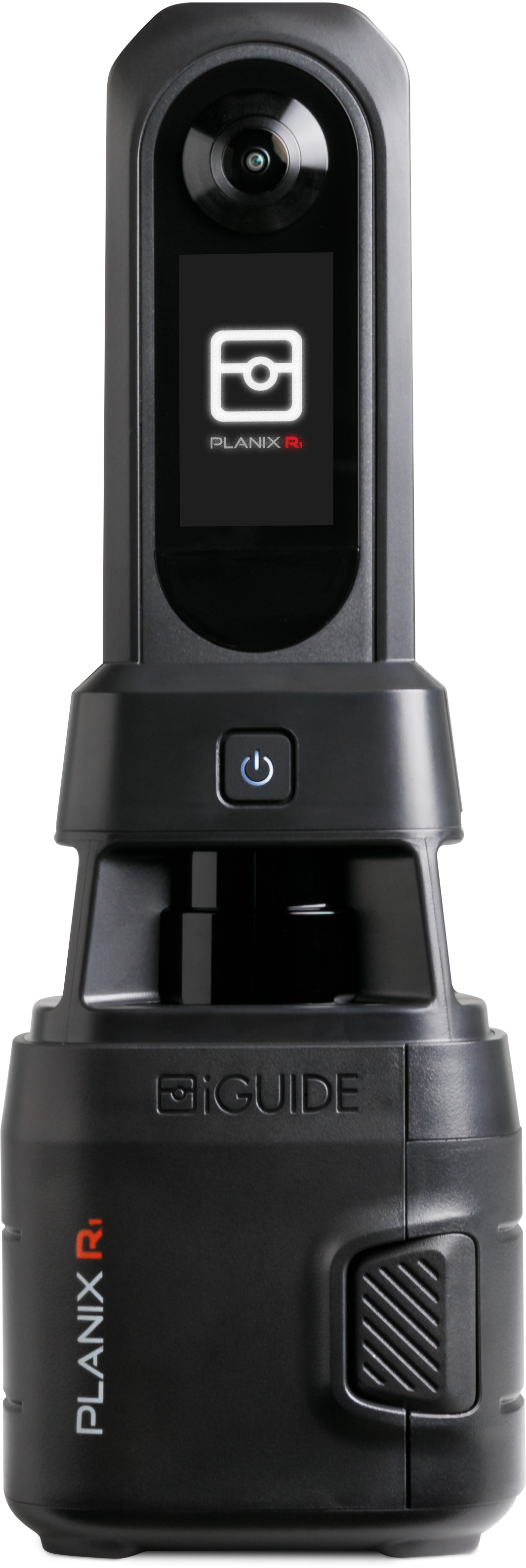

PLANIX R1
Looking to create accurate floor plans and immersive 3D tours that are easy to navigate?
The iGUIDE PLANIX R1 camera system is for you! With a built-in time-of-flight lidar scanner, the camera’s accuracy exceeds commercial and residential industry standards.
iGUIDE’s new PLANIX R1 is a game-changer—faster, more capable, and essential to our success. It’s a clear winner!
– Doug Logan, Fine Homes Photography
To capture a property, it’s a simple 3 step process:
- Capture: Connect your iGUIDE PLANIX R1 camera system to your smart device via the iGUIDE PLANIX mobile app, create a new project and start scanning the property.
- Process: Upload your data to the iGUIDE Portal where your iGUIDE 3D virtual tour, schematic floor plan, DWG or ESX files will be available once ready.
- Utilize: Easily share your files, post on social media or upload to your website. iGUIDE file formats integrate with smart devices and web platforms.
Did we mention?
iGUIDE Processing is per project with no subscription fees!
Why go R1 vs Pro?
The next-gen PLANIX R1 elevates visuals with 130% more megapixels and on-site live mapping powered by SLAM technology. Its compact, rugged design and swappable battery ensure all-day shooting with trusted precision.
Performance
Measurement Range:
Up to 40m (approx. 130')
Typical Measurement Uncertainty:
+/- 25mm up to max range (raw point cloud), typically +/- 10mm from camera to wall (minimum 60cm wall length)
Laser Scanner Field of View:
360°
360° Camera:
Ricoh THETA X
Resolution:
11,008 x 5,504 (60MP)
Mechanical
System Unit Weight (without cover):
725g (1.76lb)
System Unit Weight (with cover):
986g (2.2lb)
System Unit Dimensions (without cover):
W: 9.90cm (3.90") x D: 7.75 cm (3.05") x H: 28.89cm (11.375")
System Unit Dimensions (with cover):
W: 9.90cm (3.90") x D: 7.75 cm (3.05") x H: 29.53cm (11.625")
Shipping weight (with carrying case, without packaging):
1,996g (4.4lb)
Carrying Case Dimensions:
W: 57.15cm (22.5") x D: 15.24cm (6") x H: 13.97cm (5.5")
Tripod Mounting Thread:
1/4-20
Connectivity & System Control
Wi-Fi:
Wi-Fi 802.11 2.4GHz/5GHz Access Point
Survey App:
iGUIDE PLANIX Mobile App
Environmental
Operating Temperature Range:
5-40°C (41-104°F)
Storage Temperature Range:
-20-60°C (-4-140°F)
Relative Humidity:
0-90%
Maximum Altitude (operating):
2,000 m
Electrical
System Battery:
12V Li-Ion battery, user-replaceable
System Power Supply:
Input: Input: USB-C 100-240VAC, 50-60Hz, 1.0A;
Output: 12VDC, 1.8A
System Battery Performance:
Up to 6 hours of typical operation
PLANIX Pro
Looking to create accurate floor plans and immersive 3D tours that are easy to navigate?
The iGUIDE PLANIX camera system is for you! With a built-in time-of-flight lidar scanner, the camera’s accuracy exceeds commercial and residential industry standards.
It used to take me over two-and-a-half hours to go into a home and just do measurements and manually insert them into floor plans. But, with iGUIDE, it was all so quick and easy!
– Julie Pringle, Snap Photography
To capture a property, it’s a simple 3 step process:
- Capture: Connect your iGUIDE PLANIX camera system to your smart device via the iGUIDE PLANIX mobile app, create a new project and start scanning the property.
- Process: Upload your data to the iGUIDE Portal where your iGUIDE 3D virtual tour, schematic floor plan, DWG or ESX files will be available once ready.
- Utilize: Easily share your files, post on social media or upload to your website. iGUIDE file formats integrate with smart devices and web platforms.
Did we mention?
iGUIDE Processing is per project with no subscription fees!
Why go PRO?
The iGUIDE PLANIX Pro has up to 3 times better accuracy with the Ricoh THETA Z1 lenses calibrated by Planitar for precision when making linear measurements in 3D space using images.*
*When using iGUIDE Advanced Measurements tools in Measure Modes 2 and 3 within the iGUIDE Virtual Tour. Linear and square footage measurements on the floor plans (Measure Mode 1) result from the laser scanner and have the same accuracy for all iGUIDE PLANIX models.
Performance
Measurement Range
Up to 40m (approx. 130')
Measurement Uncertainty
+/- 1cm (approx. 0.4”) up to max range*
Laser Scanner Field of View
360 degrees
360° Camera
Ricoh THETA Z1 51GB
*Typical, based on at least 60cm (approx. 23.6”) wide wall segment.
Mechanical
System Unit Weight
980g (2.16 lbs)
System Unit Dimensions
W: 11cm (4.3”) x D: 11cm (4.3”) x H: 34cm (13.4”)
Shipping weight (with carrying case,without packaging)
3.6 kg (8 lbs)
Carrying Case Dimensions
W: 39cm (15.4”) x D: 29cm (11.2”) x H: 17cm (6.7”)
Tripod Mounting Thread
1/4-20
Connectivity & System Control
Wi-Fi
Wi-Fi 802.11 2.4GHz/5GHz Access Point
Survey Web App
iGUIDE PLANIX app or Planitar web app in a browser over Wi-Fi from any device
Environmental
Operating Temperature Range
0-40 degrees C (32-104 degrees F)
Storage Temperature Range
-20-50 degrees C (-4-122 degrees F)
Relative Humidity
0-90%
Electrical
System Battery
7.2V 6.9Ah/47.7Wh Li-Ion battery, user-replaceable
System Power Supply
Input: 100-240VAC, 50-60Hz, 1.0A;
Output: 12VDC, 3.3A
System Battery Performance
7 hours of typical operation

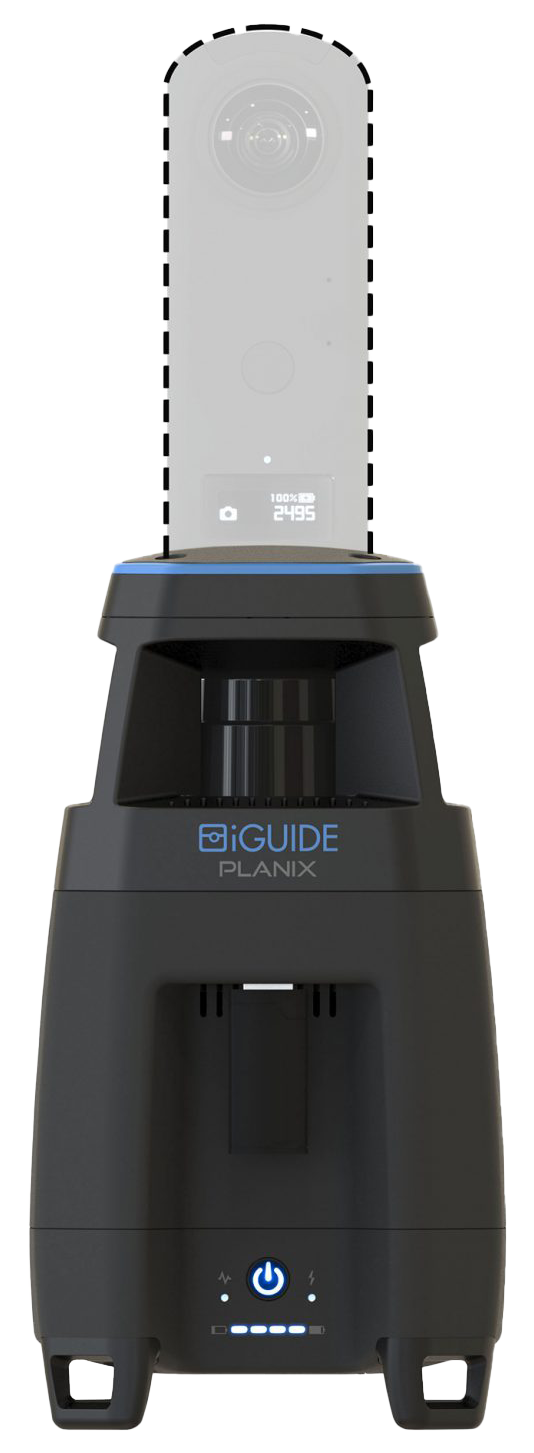

PLANIX Core
Looking to create accurate floor plans and immersive 3D tours that are easy to navigate?
The iGUIDE PLANIX camera system is for you! With a built-in time-of-flight lidar scanner, the camera’s accuracy exceeds commercial and residential industry standards.
It used to take me over two-and-a-half hours to go into a home and just do measurements and manually insert them into floor plans. But, with iGUIDE, it was all so quick and easy!
– Julie Pringle, Snap Photography
To capture a property, it’s a simple 3 step process:
- Capture: Connect your iGUIDE PLANIX camera system to your smart device via the iGUIDE PLANIX mobile app, create a new project and start scanning the property.
- Process: Upload your data to the iGUIDE Portal where your iGUIDE 3D virtual tour, schematic floor plan, DWG or ESX files will be available once ready.
- Utilize: Easily share your files, post on social media or upload to your website. iGUIDE file formats integrate with smart devices and web platforms.
Did we mention?
iGUIDE Processing is per project with no subscription fees!
Is the CORE for you?
The iGUIDE PLANIX Core is for users who already have a Ricoh THETA Z1 (other cameras are not supported) and would like to use it for making iGUIDEs. We’ll provide instructions to help you install the RICOH THETA Z1 onto the iGUIDE PLANIX camera system.
What about measurement accuracy when using iGUIDE Advanced Measurement Tools?
While linear and square footage measurements on the floor plans (Measure Mode 1) result from the laser scanner and have the same accuracy for all PLANIX models, the iGUIDE PLANIX Pro can provide up to 3 times better accuracy when making linear measurements in 3D space using images (Measure Modes 2 and 3) compared to uncalibrated lenses.
Performance
Measurement Range
Up to 40m (approx. 130′)
Measurement Uncertainty
+/- 1cm (approx. 0.4″) up to max range*
Laser Scanner Field of View
360 degrees
360° Camera
Ricoh THETA Z1
Connectivity and System Control
Wi-Fi
Wi-Fi 802.11 2.4GHz/5GHz Access Point
Survey Web App
iGUIDE PLANIX app or Planitar web app in a browser over Wi-Fi from any device
Electrical
System Battery
7.2V 6.9Ah/47.7Wh Li-Ion battery, user-replaceable
System Power Supply
Input: 100-240VAC, 50-60Hz, 1.0A; Output: 12VDC, 3.3A
System Battery Performance
7 hours of typical operation
Mechanical
System Unit Weight
980g (2.16 lbs)
System Unit Dimensions
W: 11cm (4.3″) x D: 11cm (4.3″) x H: 34cm (13.4″)
Shipping weight (with carrying case, without packaging)
3.6 kg (8 lbs)
Carrying Case Dimensions
W: 39cm (15.4″) x D: 29cm (11.2″) x H: 17cm (6.7″)
Tripod Mounting Thread
1/4-20
Environmental
Operating Temperature Range
0-40 degrees C (32-104 degrees F)
Storage Temperature Range
-20-50 degrees C (-4-122 degrees F)
Relative Humidity
0-90%
*Typical, based on at least 60cm (approx. 23.6″) wide wall segment.
Redefining Property Visualization
Meet with an iGUIDE Specialist
Ready to experience the power of iGUIDE? Schedule a personalized demo with an iGUIDE Specialist.
Get started with iGUIDE
Ready to take the next step?
Watch a demo
See how iGUIDE can help your business grow today.
Talk to an iGUIDE specialist
Learn how iGUIDE can elevate your business — talk to a specialist today.
Stay up to date
Get the latest industry insights, product updates and more delivered straight to your inbox.
Frequently Asked Questions
11,008 x 5,504px or roughly 60MP.
PLANIX R1 is smaller, lighter, faster and higher resolution than the PLANIX Pro. It also has a System Shield cover to protect the lenses during transit.
| Feature | PLANIX R1 | PLANIX Pro |
| Resolution | 60MP (11,008 x 5,504) | 26MP (6,720 x 3,360) |
| Size | 3.9” x 3.05” x 11.375" | 4.4” x 4.4” x 13.4" |
| Carry weight | 725g | 980g |
| Range | 40m | 40m |
| Accuracy | +/- 10mm* | +/- 10mm |
| HDR | Yes | Yes |
| Noise reduction | Yes | No |
| Stitching | Yes | No |
| Scan time (HDR) | 8s (3-18s) | 15s (4-16s) |
| Scans per minute | 2-3 | 2 |
No, although it’s meant to be more durable when placed in a bag and carried but should never be dropped or exposed to moisture.
The PLANIX R1 was designed to be durable and doesn’t require a hard transport case. The included soft case was chosen for its versatility and ease of use.
When using PLANIX R1 all project data is stored on the smart device used for capture. Data can be transferred via a USB cable or wirelessly if your phone/computer supports it.
When using the PLANIX App on iOS or Android, the PLANIX R1 can submit data to the iGUIDE Portal directly from the smart device used for capture. The process is much faster than with PLANIX Pro because with PLANIX R1, processing occurs parallel with capture, eliminating the need to process export.
Almost any iOS or Android device of any size or shape can control the PLANIX R1. However, because the smart device is used to store project data it’s a good idea to use a device that has at least 16GB of storage.
The PLANIX R1 is compatible with a wide variety of tripods. The following features are recommended:
- Ball head with integrated spirit level
- At least 10lb weight capacity
- Arca Swiss style quick release plate for easy set-up and take down
- Max height of 60” (153cm)
iGUIDE proprietary software is used to process the data on your home computer. It automatically aligns and stitches panoramas for you. You can then make further changes and adjust colors if you wish.
Since the camera system uses auto white balance, auto exposure and auto alignment, most iGUIDE operators spend as little as 2-3 minutes in our post processing software “Stitch” before sending us the data. Additional time is needed for processing still images for the image gallery and will depend on your individual preferences and workflow.
We have a network of iGUIDE Service Operators available to help. Visit our iGUIDE Service Operator map to find one close to you.
The iGUIDE PLANIX camera system has a typical battery life of 7 hours.
Yes. The warranty for the iGUIDE PLANIX camera system is one year for parts, materials and workmanship.
The camera images are saved as JPEGs and can be modified in any image-processing software (e.g. to edit your mirror reflections) prior to being automatically stitched into panoramas in Planitar proprietary software.
We have an online training library with videos, articles and step-by-step instructions hosted on our iGUIDE Help Center.
Yes. We have partners with Bread Financial for U.S. purchases and RBC PayPlan in Canada. For more additional details visit our store financing page.
The iGUIDE PLANIX camera system performs well in low-light settings. The camera system can brighten darker spaces by utilizing its HDR (High Dynamic Range).
Our return policy: Customer may return, at the expense of Customer, the first System ever purchased by Customer from Planitar within 30 days of the date of the original shipment provided that the System is in the original packaging and all shipping instructions provided by Planitar are followed. For clarity: (i) no returns are possible after the 30 day period; and (ii) this Return Policy does not apply to any subsequently purchased System or any System obtained through a trade-in program. If the System is returned within this timeframe and confirmed by Planitar to be in full working condition and not to be damaged, Planitar will provide a refund based upon the original payment method and paid amount. Customer agrees that the refund will exclude the following: (i) restocking fee equal to 15% of the original System price; (ii) original shipping costs to Customer, and (iii) cost of any repairs required to restore the System to full working condition, as deemed necessary by Planitar.
No. iGUIDE technology is not compatible with third-party camera systems. Our proprietary iGUIDE PLANIX camera system is built and calibrated to accurately capture the data and information needed to generate iGUIDE 3D virtual tours, floor plans, and photos.
The iGUIDE PLANIX camera system is ideal for real estate, construction, insurance professionals and property managers who must capture high-quality images, floor plans and 3D tours of interior spaces.
This system is specifically designed to streamline the creation process of comprehensive property documentation, allowing users to efficiently generate visual assets for marketing and informational purposes.
With its advanced imaging capabilities and intuitive software integration, the iGUIDE PLANIX camera system facilitates the production of immersive virtual tours and detailed floor plans, enhancing the overall presentation and understanding of a property's layout and features.
Trusted by
industry professionals
It used to take me over two-and-a-half hours to go into a home and just do measurements and manually insert them into floor plans. But, with iGUIDE, it was all so quick and easy. I have been able to grow my business by a whopping 375% using iGUIDE, and the cost of the camera has paid for itself a hundredfold, many times over!
By adding iGUIDE as a service, I had a well-rounded, complete solution to offer clients. So my capacity is at zero since I started offering iGUIDE.
I made enough revenue to cover that in the first 10 weeks or something, it was crazy how quickly it paid for itself, and it's continued to generate a good degree of profit for me every single month since.
It [iGUIDE] was faster. It was lighter. It was smaller. It made more sense to me. The interface just made more sense to me.
Discover our Knowledge Hub

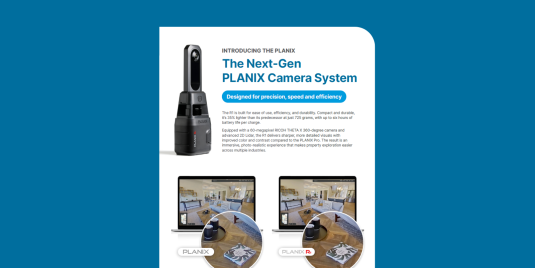

Planitar Launches Next-Gen PLANIX Camera: A Leap Forward in Space Capture Innovation

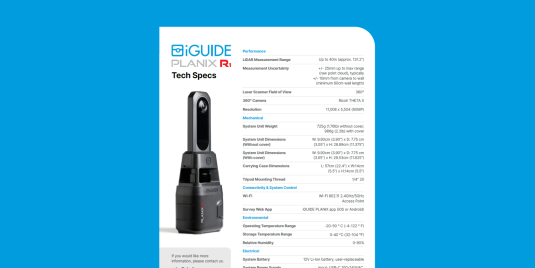

iGUIDE PLANIX R1 Camera System - Technical Specifications
