Save time and cut costs by quickly documenting and sharing accurate measurements, floor plans, and images for Insurance claims and Restoration projects.

Want to learn more? Book a call with one of our experts.

iGUIDE provides two solutions for insurance and restoration professionals to capture and share comprehensive property data for use in estimating the cost of damages quickly and efficiently.

iGUIDE Radix

The fastest way to document a loss. Capture a loss in minutes, upload your data from the site, and get access to the images and measurements instantly to estimate remotely.

Try it out

iGUIDE provides two solutions for insurance and restoration professionals to capture and share comprehensive property data for use in estimating the cost of damages quickly and efficiently.

iGUIDE Radix

The fastest way to document a loss. Capture a loss in minutes, upload your data from the site, and get access to the images and measurements instantly to estimate remotely.

Try it out

iGUIDE (Standard or Premium)

Comprehensively document a loss and also get professionally drafted floor plans, room measurements, and square footage totals.

Try it out

“In our industry, it is all about taking a photo that gathers as much data as possible with one click and then translating that data into an estimate. iGUIDE is the tool for the job.”

Paul Spencer, Virtual Estimating

iGUIDE (Standard or Premium)

Comprehensively document a loss and also get professionally drafted floor plans, room measurements, and square footage totals.

Try it out

“In our industry, it is all about taking a photo that gathers as much data as possible with one click and then translating that data into an estimate. iGUIDE is the tool for the job.”

Paul Spencer, Virtual Estimating

ESX Processing (USD)

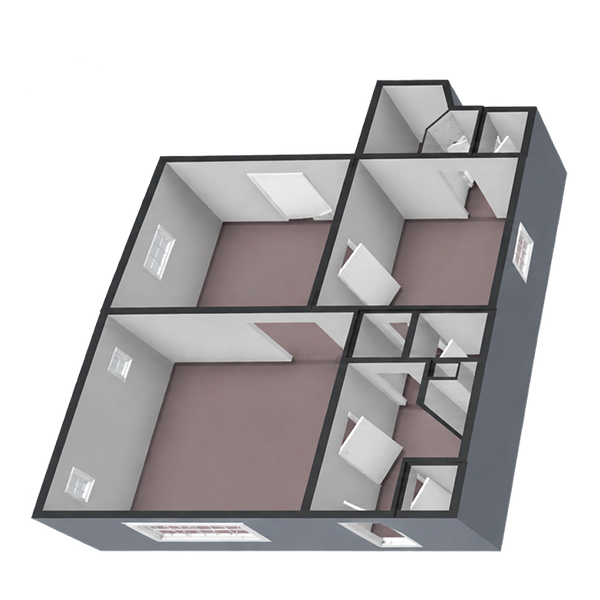

An ESX file can now be created from any iGUIDE! Simply request the ESX file upon creation of a Standard or Premium iGUIDE and your file will be delivered within 48 hours. Accurate sketches are now just a few clicks away.*

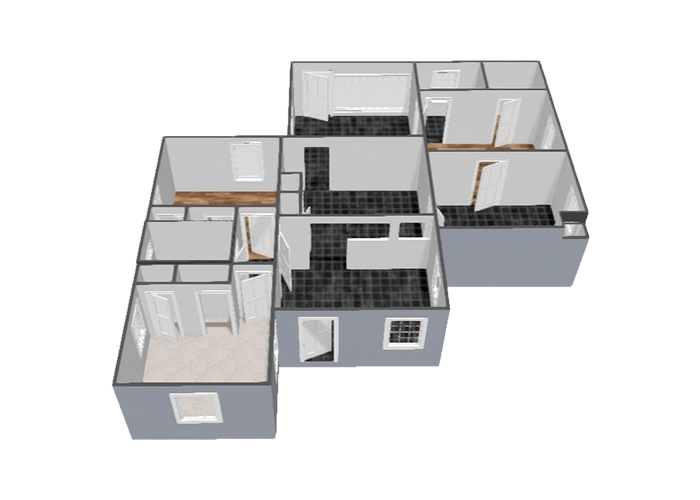

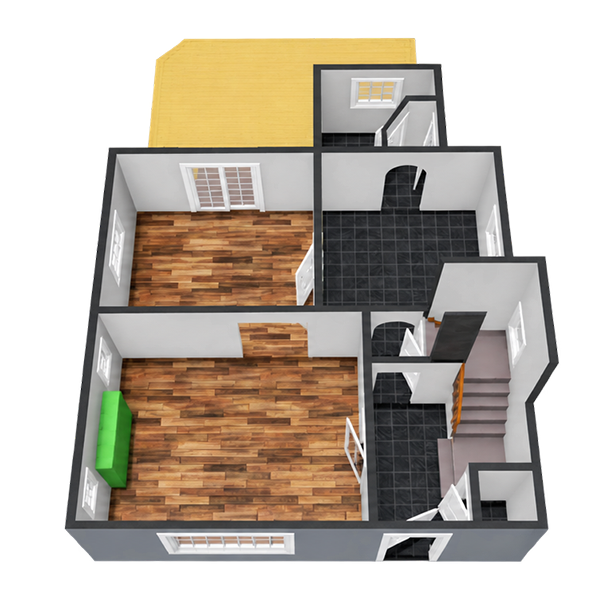

iGUIDE Standard

Billable Area iGUIDE Processing ESX Processing Total
0-10,000 ft² $0.02 per ft² $0.02 per ft² $0.04 per ft²
10,000-30,0000 ft² $0.015 per ft² $0.015 per ft² $0.03 per ft²
30,000-100,0000 ft² $0.011 per ft² $0.011 per ft² $0.022 per ft²
100,000 ft² + $0.009 per ft² $0.009 per ft² $0.018 per ft²

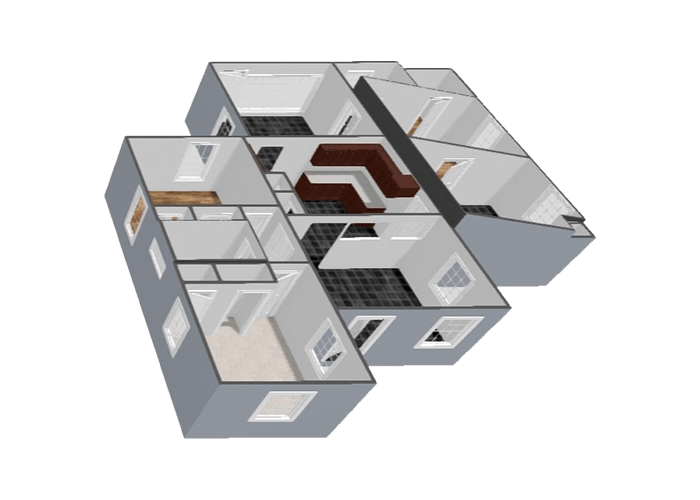

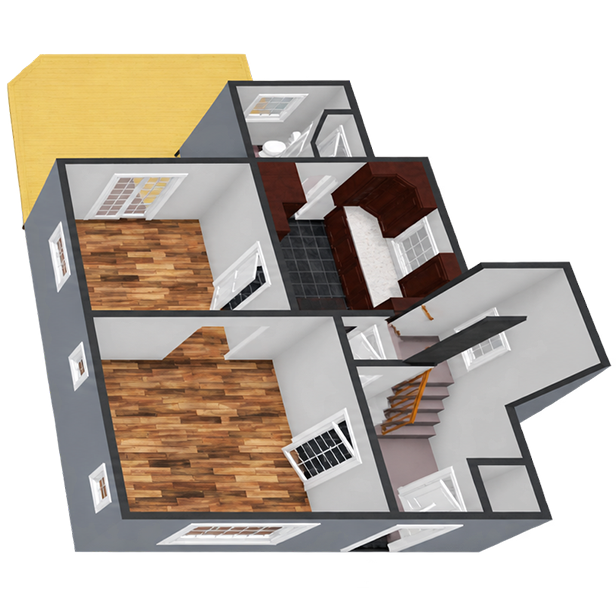

iGUIDE Premium

Billable Area iGUIDE Processing ESX Processing Total
0-10,000 ft² $0.03 per ft² $0.02 per ft² $0.05 per ft²
10,000-30,0000 ft² $0.023 per ft² $0.015 per ft² $0.038 per ft²
30,000-100,0000 ft² $0.017 per ft² $0.011 per ft² $0.028 per ft²
100,000 ft² + $0.013 per ft² $0.009 per ft² $0.022 per ft²
Download Sample ESX

*ESX sketches provided by iGUIDE are intended to be used as a starting point for an estimate and may still require additional information. Please refer to the list below:

  • Walls: All walls are set to four inches.
  • Doors: Doors will match the horizontal dimension from Planitar Inc.’s proprietary drafting software but not the height. Door types will match the type represented in Planitar Inc.’s proprietary drafting software.
  • Windows: Windows will match the horizontal dimension from Planitar Inc.’s proprietary drafting software but not the height. All windows will be the standard type of window.
  • Room names/types: Room names will match the corresponding names from Planitar Inc.’s proprietary drafting software. Room types are selected from the Xactimate library to closely match the types used in Planitar Inc.’s proprietary drafting software.
  • Open to below: Spaces that are open to below are marked with an area and set as a hole, thus removing the floor area.
  • Stairs between floors: Stairs are shown the full length, only going up to the floor above. The run will match the length of the stairs in Planitar Inc.’s proprietary drafting software. The rise and number of risers will not be changed to match Planitar Inc.’s proprietary drafting software.
  • Steps that don’t separate floors: Single steps will align to room separations. Two or more steps will be shown as a staircase, but the two floor elevations on either side of the steps will not change.
  • Rooms under stairs: Any room that is documented in Planitar Inc.’s proprietary drafting software that is under a set of stairs going up, will be created on a separate floor that inlines with the corresponding floor to account for the floor area under the stairs.
  • Ledges: This feature will not be shown in the ESX file.
  • Restricted heights: Roof features will not be shown in the ESX file. The areas of restricted height will be separated with room dividers.
  • Bay windows: Bay windows will be represented as a small room with the exterior walls following the exterior walls around the window.
  • Premium fixtures: This feature will not be shown in the ESX file.
  • Structural objects: Any Columns that are not attached to a wall will be represented as an annotated shape in the ESX file.
  • 3D features: Anything that can not be represented in Planitar Inc.’s proprietary drafting software 2D plan, will not be shown in the ESX file.
  • Multi floor buildings: Different floors will be separated in the ESX file, with a standard elevation change of nine feet. Floors will be slightly offset from one another. Floors will not be vertically aligned.
  • Ceilings: Details and/or construction will not be specified/shown in the ESX file.
  • Roof: Details and/or construction will not be specified/shown in the ESX file.
  • Floors: Construction will not be specified in the ESX file.
  • File completeness: Only a Sketch will be provided, the Claim Info, Estimate Items, Photos, and Documents will not be completed.

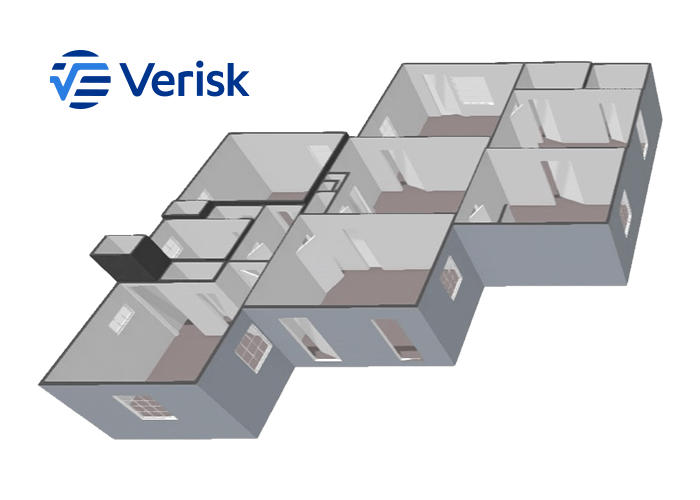

iGUIDE is also compatible with other 3rd party sketching services that provide an ESX file. Need a place to start? We suggest:

Documenting a small claim can be time-consuming and expensive. Travel time, multiple visits, and human error can all add up.  iGUIDE Radix can help.

iGUIDE Radix is an easily shareable 3D tour and lidar point cloud data. Not to mention the ability to measure critical information within the virtual space, saving you time and money by eliminating unnecessary site visits.

Book a live demo

Documenting a small claim can be time-consuming and expensive. Travel time, multiple visits, and human error can all add up.  iGUIDE Radix can help.

iGUIDE Radix is an easily shareable 3D tour and lidar point cloud data. Not to mention the ability to measure critical information within the virtual space, saving you time and money by eliminating unnecessary site visits.

Book a live demo

The iGUIDE camera system is required to create an iGUIDE Radix or iGUIDE (Standard or Premium)

Learn more

The iGUIDE camera system is required to create an iGUIDE Radix or iGUIDE (Standard or Premium)

Learn more

The iGUIDE camera system captures lidar point cloud data and 360-degree images

This data can be immediately published online and shared to begin the estimating process or can be further edited in Planitar’s desktop Stitch software before uploading. Upon upload to the iGUIDE cloud a 3D tour and DXF files are automatically generated.

The DXF files will contain all the 2D point cloud data for use in AutoCAD or compatible software. Measurements can be made on the 3D tour itself and exported in a JPEG file. Import a scaled JPEG file into Xactimate, Symbility or other claim management software as an underlay for rapid floor plan sketching. Or send your data to Planitar and have a complete floor plan drafted for you as a regular iGUIDE. As all iGUIDEs, Radix can be downloaded as a standalone ZIP file for archival purposes, offline viewing or hosting on a 3rd party online claim management cloud.

Learn more about the camera

Give iGUIDE Radix a try

More Samples

iGUIDE Standard – Fire

iGUIDE Radix – Fire

iGUIDE Standard – Flood

iGUIDE Radix – Flood

iGUIDE Radix is a cost-effective way to document small claims as quickly as possible. However, fully drafted floor plans are also available with iGUIDE Standard and iGUIDE Premium.

Included Features iGUIDE Radix iGUIDE Standard iGUIDE Premium
3D Tour with lidar point cloud
3D Tour with accurate floor plan
Advanced on-screen measurements
Download JPG measurements
Self-hosting and offline use
DXF point cloud
Accurate DXF, PDF, SVG Floor Plans
Detailed Floor Plans
On-site upload

iGUIDE Radix is a cost-effective way to document small claims as quickly as possible. However, fully drafted floor plans are also available with iGUIDE Standard and iGUIDE Premium.

Included Features iGUIDE Radix iGUIDE Standard iGUIDE Premium
3D Tour with lidar point cloud
3D Tour with accurate floor plan
Advanced on-screen measurements
Download JPG measurements
Self-hosting and offline use
DXF point cloud
Accurate DXF, PDF, SVG Floor Plans
Detailed Floor Plans
On-site upload
